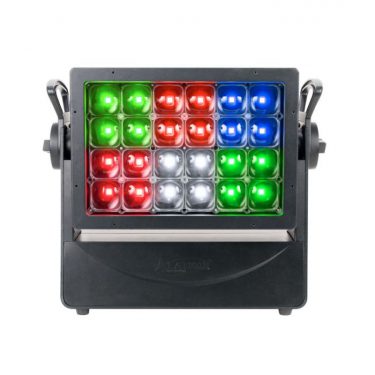

SOURCE
(24) 40W 4-in-1 RGBW LEDs
50,000 Hour Average LED Life
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
79,252 LUX 7,362 FC @9.8’ (2m) (6° Full ON)
6,848 LUX 636 FC @9.8’ (2m) (32° Full ON)
COLOR
RGBW
EFFECTS
Pixel Zone Control
64 Color Presets and 15 Unique Color Macros
Electronic Strobe
16-Bit Dimming and Variable Dimming Curve Modes
CONTROL / CONNECTIONS
6° to 32° Motorized Zoom
Manual 210° Tilt Movement
Multiple DMX Channel Modes (33 total channels)
Adjustable Refresh Rate and Gamma Brightness
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX In/Out
powerCON TRUE1 In
SIZE / WEIGHT
Length: 16.4” (478mm)
Width: 11.2” (233mm)
Vertical Height: 16.0” (407.5mm)
Weight: 46.0 lbs. (20.9 kg)
ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
990W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
